9kW Type1 White Electric Car Charger Cable Plug 40A ,Single Gun Charging Cable AC 110V-240V

5 pieces
MOQ
negotiation
Price
9kW Type1 White Electric Car Charger Cable Plug 40A ,Single Gun Charging Cable AC 110V-240V
Features Gallery Product Description Request A Quote
Features
Specifications
Executive Standard: SAE J1772 Type1
Rated Voltage: AC 110V-240V
Rated Current: 40A
Rated Power: 9kW
Color: Black/white
Protection Rank: IP55
Highlight:

240vac type 1 ev cable

,

110vac type 1 charging cable

,

9kw type 1 charging cable

Basic Infomation
Place of Origin: China
Brand Name: MINKO
Certification: CE(ICR lab), UKCA, ROHS,ISO, REACH
Model Number: U1-40
Payment & Shipping Terms
Packaging Details: L210xW85xH52 (mm)
Delivery Time: 8 -10 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal,Skrill,Transferwise
Supply Ability: 1000000 pieces per month
Product Description

9kW Type1 White Electric Car Charger Cable Plug 40A ,Single Gun Charging Cable AC 110V-240V

Detailed specification:

Portable EV Charging with power ratings of 3.5KW, 7 kW,9/11kW is suitable for different types of vehicles.

Adjustable current, suitable for various scenarios.

The Voltage and Current are stable during charging, which can protect the battery and delay using time.

We can use normally in ultra-high temperature environment up to 50℃.



EN Standard Strong Patience.

The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditions.

TPU Cable.

Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.

Climate Friendly Stronger & Anti-aging.

The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
Arcing Design.
Unique self-cleaning’ design ensures that impurities on the surface of the pins can be removed during each plug-in process.
Ergonomic Design and Integrated Design
Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.
Better Conductivity.
Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
Temperature Monitoring
Detects if the temperature is higher than the ‘set safe’ value, if this occurs, the current will automatically be cut off.



Electrical Performance
Protection rank IP55
Fire retardant level 94 V-0
Rated Current 16A / 32A/40A/48A
Rated voltage AC 110V-240V
Insulation resistance > 1000M ohm (DC 500V)
Terminal temperature rise <50K
Withstand voltage 2000V
Operating temperature 30℃ to 50℃
Mechanical Testing
Mechanical life no load plug in / pull out > 10000 times
Impact of external force qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector by copper alloy with nickel bottom plating and 3um silver surface plating
Shell white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable black with TPU jacket. Other color optional by customizing
Features
Features

Integrated external mold.

Excellent waterproof and dustproof performance.

Package
Package Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep
Customizing
Customizing Logo put on shell by laser or flexible tooling; on Oxford cloth bag by printing
Certificate
Certificate CE, UKCA, ROHS, ISO


Advantages:

  1. Pure copper core-Low fever
  2. High efficiency Fast charging
  3. Security-Safety certification
  4. Portable-Household or tourism

9kW Type1 White Electric Car Charger Cable Plug 40A ,Single Gun Charging Cable AC 110V-240V 0

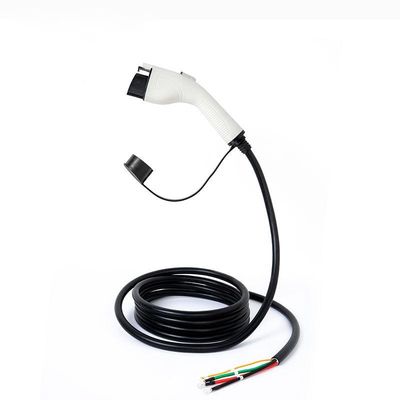

9kW Type1 White Electric Car Charger Cable Plug 40A ,Single Gun Charging Cable AC 110V-240V 19kW Type1 White Electric Car Charger Cable Plug 40A ,Single Gun Charging Cable AC 110V-240V 29kW Type1 White Electric Car Charger Cable Plug 40A ,Single Gun Charging Cable AC 110V-240V 3

Caution:

  1. Don't submerge the EV charging cable in water.
  2. Don't step on, fold or knot the cable.
  3. Don't drop the EV charging box or place a heavy object on it.
  4. Don't place the charging cable near high temperature object when charging.
  5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
  6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
  7. the power distribution is done by the professionals.
  8. Don't put fingers into the charging connector when the power plug is still connecting to the power.
  9. Don't use this EV charging box when the cable is damaged.
  10. The EV charging box is only for EV charging using.
  11. Don't use this device with other brand's extension cord or adapter.
