16A Type1 Mobile Charging Staion AC Charging Pile SAE J1772 With LCD

5 pieces
MOQ
negotiation
Price
16A Type1 Mobile Charging Staion AC Charging Pile SAE J1772 With LCD
Features Gallery Product Description Request A Quote
Features
Specifications
Charging Plug: SAE J1771 Type1
Rated Voltage: AC 110-240V/ Single Phase
Rated Current: 16A
Rated Power: 3.84kW
Input Power: 250V Max
Operating Temperature: -35°C To 50°C
Frequency: 50/60Hz
Electric Cable: IP65 Circuit Breaker
Highlight:

ip65 type 1 charger

,

3.84kW type 1 car charger

,

16a type 1 car charger

Basic Infomation
Place of Origin: China
Brand Name: MINKO
Certification: CE(ICR lab), UKCA, ROHS,ISO, REACH
Model Number: Q16US-16A
Payment & Shipping Terms
Packaging Details: L210xW85xH52 (mm)
Delivery Time: 8 -10 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal,Skrill,Transferwise
Supply Ability: 1000000 pieces per month
Product Description

16A Type1 Mobile Charging Staion AC Charging Pile SAE J1772 With LCD


Detailed specification:

Portable EV Charger, with power ratings of 3KW, 7 kW, is suitable for different types of vehicles.

Adjustable current, suitable for various scenarios.

The Voltage and Current are stable during charging, which can protect the battery and delay using time.

We can use normally in ultra-high temperature environment up to 50℃.

It can also be used normally in the -35℃.



EN Standard Strong Patience.

The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditions.

TPU Cable.

Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.

Climate Friendly Stronger & Anti-aging.

The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
Arcing Design.
Unique self-cleaning’ design ensures that impurities on the surface of the pins can be removed during each plug-in process.
Ergonomic Design and Integrated Design
Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.
Better Conductivity.
Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
Temperature Monitoring
Detects if the temperature is higher than the ‘set safe’ value, if this occurs, the current will automatically be cut off.



Charging plug

Type 2

Type 1

Model No.

Q16EU-16A

Q32EU-32A

Q16US-16A

Q32US-32A

Rated voltage

AC 230V / Single phase

AC 110-240V/ Single phase

Rated current

8, 10, 12, 14, 16A adjustable

8, 12,14,16, 20, 24, 28, 32A adjustable

8, 10, 12, 14, 16A adjustable

8, 12,14,16, 20, 24, 28, 32A adjustable

Rated power

3.68kW

7.36kW

3.84kW

7.68kW

Certificates

CE, UKCA, ROHS,ISO, REACH, FCC

Protection rank

IP65

Earth leakage protector

30m AC

input power

250V Max

length

European standard, Default 5M

US standard,Default 7.4M

start method

Plug and Play

Operating temperature

-35°C to 50°C

electrical protection

Over current protection, residual current protection, grounding protection, surge protection,

Over voltage /under voltage protection, over voltage/ under frequency protection, over temperature protection

Applied Materials

Housing: Black thermoplastic PC940. Corrosion and wear protection.

Cable: 4.5M black with TPU jacket.

With CE and TUV mark issued by TUV.

Warranty

1 Years for the whole machine



 Feature:

1. The product complies with the Low Voltage Directive 2014/35/EU, IEC61851-1:2019

2.IP65, weatherproof; leakage protection; impact resistance

3. Charging status and working error are simply displayed by LED indicator light and LCD screen

4. Optional unction of current selection button,

5. 8A-32A free switching current

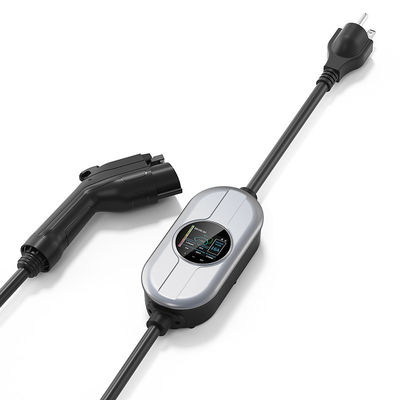

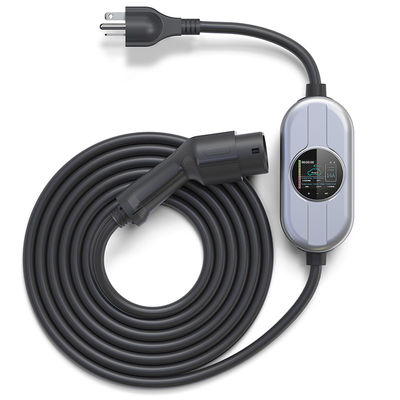

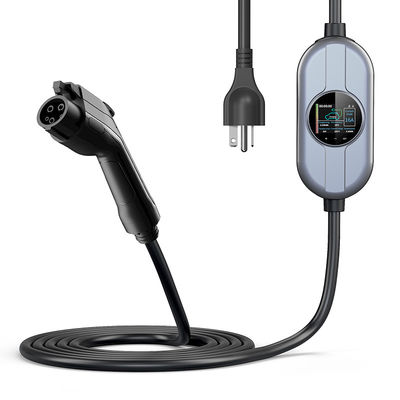

16A Type1 Mobile Charging Staion AC Charging Pile SAE J1772 With LCD 016A Type1 Mobile Charging Staion AC Charging Pile SAE J1772 With LCD 116A Type1 Mobile Charging Staion AC Charging Pile SAE J1772 With LCD 216A Type1 Mobile Charging Staion AC Charging Pile SAE J1772 With LCD 3

Caution:

  1. Don't submerge the EV charging cable in water.
  2. Don't step on, fold or knot the cable.
  3. Don't drop the EV charging box or place a heavy object on it.
  4. Don't place the charging cable near high temperature object when charging.
  5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
  6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
  7. the power distribution is done by the professionals.
  8. Don't put fingers into the charging connector when the power plug is still connecting to the power.
  9. Don't use this EV charging box when the cable is damaged.
  10. The EV charging box is only for EV charging using.
  11. Don't use this device with other brand's extension cord or adapter.
