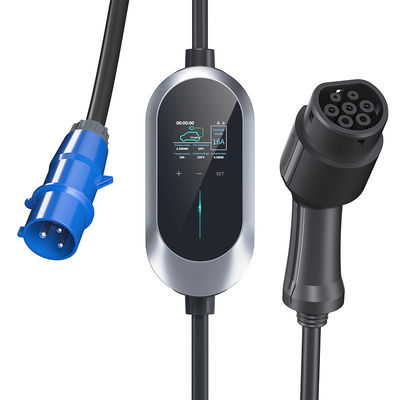

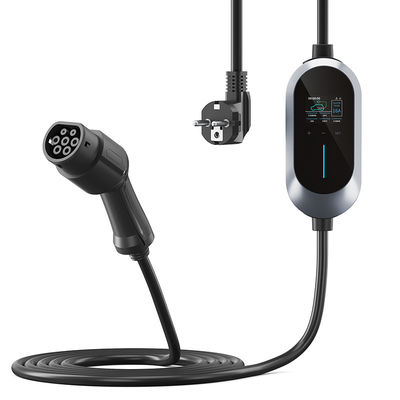

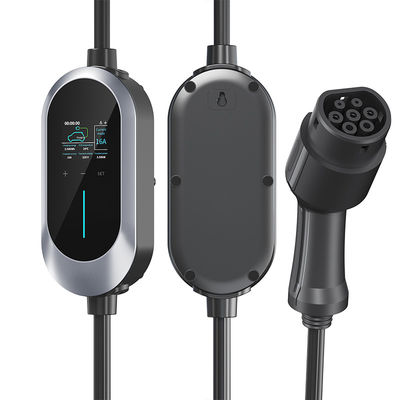

Type 2 Portable EV Charging Pile With Blue CEE 16A 1 Phase Plug

5 pieces
Type 2 Portable EV Charging Pile With Blue CEE 16A 1 Phase Plug
Features Gallery Product Description Request A Quote
Charging Plug: IEC 62196 Type2
Rated Voltage: AC 230V / Single Phase
Rated Current: 16A
Rated Power: 3.68kW
Input Power: 250V Max
Operating Temperature: -35°C To 50°C
Frequency: 50/60Hz
Electric Cable: IP65 Circuit Breaker

3kw electric vehicle charging pile


CEE EV Charging Pile


IEC 62196 EV Charging Pile

Basic Infomation
Place of Origin: China
Brand Name: MINKO
Certification: CE(ICR lab), UKCA, ROHS,ISO, REACH
Model Number: W16EU-16A
Payment & Shipping Terms
Packaging Details: L210xW85xH52 (mm)
Delivery Time: 8 -10 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal,Skrill,Transferwise
Supply Ability: 1000000 pieces per month
Product Description

Type 2 Portable EV Charging Pile with Blue CEE 16A 1 Phase plug

Detailed Specification:

Portable EV Charger, with power ratings of 3KW, 7 kW, is suitable for different types of vehicles.

Adjustable current, suitable for various scenarios.

The Voltage and Current are stable during charging, which can protect the battery and delay using time.

We can use normally in ultra-high temperature environment up to 50℃.

It can also be used normally in the -35℃.


EN Standard Strong Patience.

The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditions.

TPU Cable.

Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.

Climate Friendly Stronger & Anti-aging.

The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
Arcing Design.
Unique self-cleaning’ design ensures that impurities on the surface of the pins can be removed during each plug-in process.
Ergonomic Design and Integrated Design
Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.
Better Conductivity.
Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
Temperature Monitoring
Detects if the temperature is higher than the ‘set safe’ value, if this occurs, the current will automatically be cut off.


Model W16EU-16A W32EU-32A
Input / Output Voltage AC 230V/ Single phase AC 230V/ Single phase
Input / Output Current 8, 10, 12, 14, 16A adjustable 8, 10,12,14,16A, 20, 24, 28,32A adjustable
Max Output Power 3.68KW 7.36KW
Frequency 50/60Hz
Input Plug Schuko CEE 3-Pin
Output Plug Type2(Mennekes)
Output Cable 5M
Withstand Voltage 3000V
Work Altitude <2000M
Stand by <3W
Protection over voltage protection, over load protection, over-tempprotection, under voltage protection, earth leakageprotection, lightning protection, short circuit protection
IP level IP65
Touch Button Yes
LCD Screen Yes
Current Adjustment Yes
Timing / Appointment Yes
Certification CE, RoHS



1. The product complies with the Low Voltage Directive 2014/35/EU, IEC61851-1:2019

2.IP65, weatherproof; leakage protection; impact resistance

3. Charging status and working error are simply displayed by LED indicator light and LCD screen

4. Optional unction of current selection button,

5. 8A-32A free switching current

Type 2 Portable EV Charging Pile With Blue CEE 16A 1 Phase Plug 0Type 2 Portable EV Charging Pile With Blue CEE 16A 1 Phase Plug 1Type 2 Portable EV Charging Pile With Blue CEE 16A 1 Phase Plug 2Type 2 Portable EV Charging Pile With Blue CEE 16A 1 Phase Plug 3


  1. Don't submerge the EV charging cable in water.
  2. Don't step on, fold or knot the cable.
  3. Don't drop the EV charging box or place a heavy object on it.
  4. Don't place the charging cable near high temperature object when charging.
  5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
  6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
  7. the power distribution is done by the professionals.
  8. Don't put fingers into the charging connector when the power plug is still connecting to the power.
  9. Don't use this EV charging box when the cable is damaged.
  10. The EV charging box is only for EV charging using.
  11. Don't use this device with other brand's extension cord or adapter.
